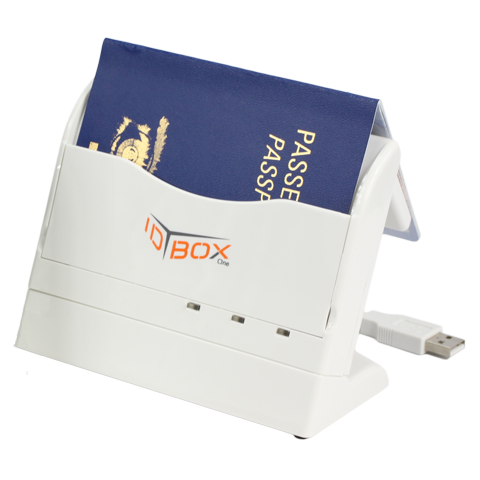

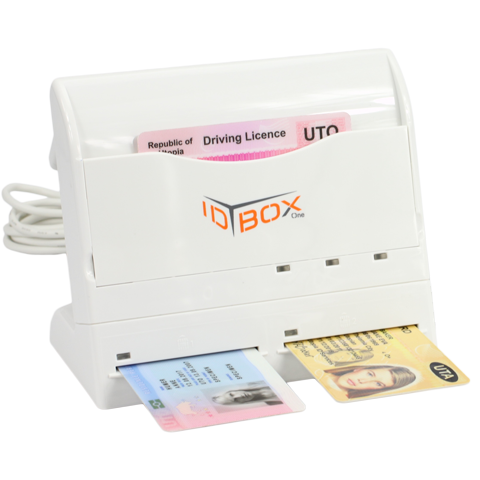

ID BOX One – Desktop series

The Smallest One-Pass OCR & RFID Reader

Read any MRZ & contactless chip without user action. Cost efficient compared to complete datapage scanner. Read both MRZ characters and contactless chip data without movement.

Contact TSSL

Features

  • ISO14443 contactless reader
  • 2x ISO 7816 contact reader
  • ISO 7816 SAM reader
  • OCR scanner

Applications

  • Police identification
  • Airport check-in, Self service terminals
  • Border control
  • Hotels
  • Banks
  • Car rental companies

Additional Information

General
Dimensions
140 x 90 x 105 mm for ID BOX One 111 and 121
140 x 90 x 115 mm for ID BOX One 151
Temperature
In operation: 0°C to +50°C
Storage: -40°C to +80°C
Communication
USB 2.0 full speed (12 Mbps)
Host operating systems
Windows, Linux, Android
Contactless reader
Speed
Baudrate up to 848 kbps
Number of antennas
2
Communication
USB 2.0 full speed (12 Mbps)
CCID protocol
PC/SC 2.01 for Windows, Linux, Android
PC/SC .net wrapper
Contact card readers
Speed
Baudrate up to 600 kbps
TA1=97 supported
Clock: 5 Mhz (ISO 7186) – Up to 12 MHz
Number of slots
2 slots in ID-1 format
1 SAM slot (SIM format
Communication
USB 2.0 full speed (12 Mbps)
CCID protocol
PC/SC 2.01 for Windows, Linux, Android
PC/SC .net wrapper
