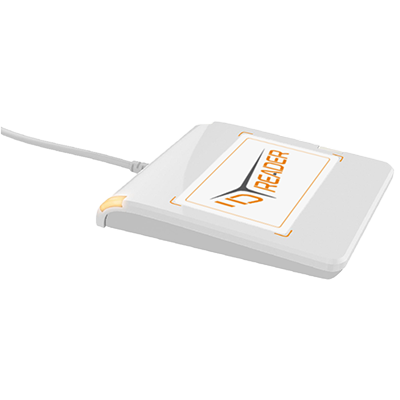

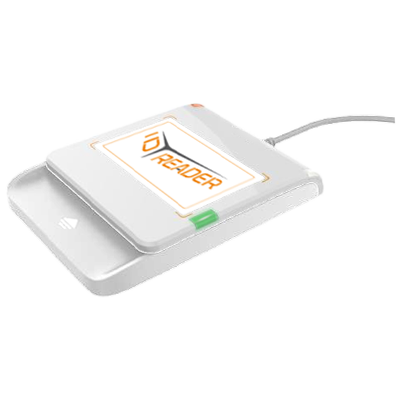

ID READER

Markets: Home ID, Network log on, Web based authentication, Online tax declaration, Certificate sign on

Customers: Governments, Enterprises and Home users

Contact TSSL

Features

ISO/IEC 7816 & ISO/IEC 14443 compliant contact, contactless and dual interface smart card readers.
Supports Class A, B and C cards.
Supports T=0, T=1 contact cards and T=Cl contactless cards.
PC/SC standard and CCID class compliant readers for interoperability.


Applications

Inter-operable, high performance (upto 848 kpbs) and multi-technology devices.
Compact and modern design. Reads a host of contact & contactless identity cards.
No additional vendor drivers required, making it easy to work in Windows, Linux and macOS.
Easy field upgradable firmware over USB.

Additional Information

General
Dimensions
80 x 65 x 12,5 mm for ID READER 112
96 x 65 x 13,8 mm for ID READER 111 & 121
Temperature
In operation: -20°C to +50°C
Storage: -40°C to +80°C
Communication
USB 2.0 full speed (12 Mbps)
Host operating systems
Windows, MacOS, Linux, Android
Contactless reader
Contact card reader
Supported protocols
ISO 14443 Part 1 to 4, type A/B – T=CL and Mifare
All Mifare products: Ultralight, 1K, 4K, Plus, DESFire EV1, Smart MX,…
SO 7816 – T=0 and T=1
5V, 3V, 1.8V, ISO 7816 Class A/B/C
Speed
Baudrate up to 848 kbps
Baudrate up to 230 kbps
Clock: Up to 10 Mhz
Communication
CCID compliant (Windows, MacOS, Linux)
Custom CCID library (Android)
PC/SC 2.01 compliant (Windows, MacOS, Linux)
PC/SC .net wrapper (Windows)
Firmware
Support for RF configuration
Pass-through command to reach protocol lower layer
Field upgradable
Field upgradable
