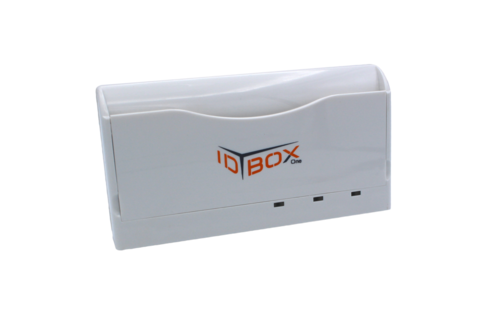

ID BOX One – Attach series


The Smallest One-Pass OCR & RFID Reader

ID BOX One Attach is the smallest static eID reader of the market.ID BOX One – Attach series reads the MRZ and the chip of electronic ID documents without action from the user. It supports all ICAO standards and ensures documents are read fast and accurately.

Contact TSSL

Features

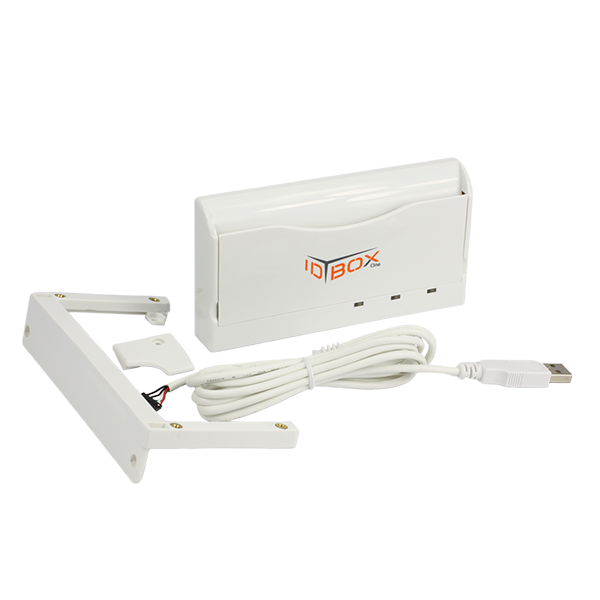

  • Ready to snap on the side of an existing kiosk, automat, vending machine etc.
  • The ID BOX One – Attach series reads all ePassports and ID documents such as national ID cards, driver’s licenses, residence permits and others.

Applications

  • Hotel check-in
  • Airport passport control
  • Self-service terminal
  • Banking KYC
  • SIM registration
  • Car rental

Additional Information

General
Dimensions
139 x 72 x 22 mm
Temperature
In operation: 0°C to +50°C
Storage: -40°C to +80°C
Communication
USB 2.0 full speed for ID BOX One 211 and 221
UART for ID BOX One 211
Host operating systems
Windows, Linux, Android

Contactless reader
Speed
Baudrate up to 848 kbps
Number of antennas
1
Communication
USB 2.0 full speed (12 Mbps) for ID BOX One 221
CCID protocol
PC/SC 2.01 for Windows, Linux, Android
PC/SC .net wrapper

MRZ scanner
MRZ Lines
1 line: IDL, CAN, …
2 lines: ID2 cards, ePP
3 lines: eID
Font Type
OCR B
Communication
USB 2.0 full speed for ID BOX One 211 and 221
UART for ID BOX One 211

Documents
