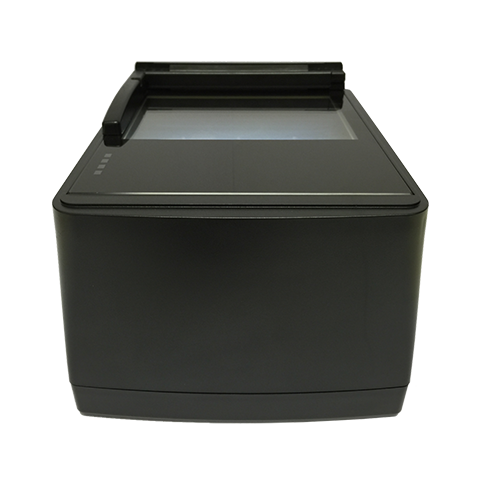

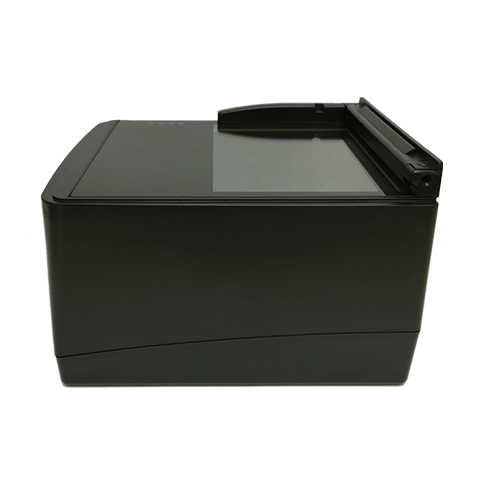

Thales Gemalto OEM Document Reader KR9000


Ideal for self-service kiosks

Completely hoodless, Thales Gemalto OEM Document Reader KR9000 ​is ideal for self-service check-in kiosks and automatic gates or eGates.

Part of our document reader solutions for OEMs, the reader quickly reads and processes images from documents, ePassports, and 2D barcoded boarding passes, automatically removing reflections for excellent document authentication.

Contact TSSL

Details of the Gemalto OEM Document Reader KR9000 and key standard features

  • Full-page document reader ideal for integrating into counters, kiosks, and gates.
  • Quickly processes images from documents, electronic passports and 2D barcoded boarding passes, automatically removing reflections
  • “Active video” document detection allows reading in virtually any orientation
  • Reliable, static parts and dust-sealed optics rated to IP50
  • Support for ICAO-compliant and non-compliant travel documents

Additional Information

Illumination
Near IR B900:
880nm, +/-5%
White visible:
430-700nm
Ultraviolet (UVA):
365nm
Gemalto Confirm™ Security Laminate (optional)

Resolution
Standard 400 DPI image resolution, 3.1 Megapixel sensor
High Resolution 720 DPI option, 10 Megapixel sensor
Internal image processing RGB 36 bit bit color system

Compatibility
Windows® 7, Windows® 8.1, Windows® 10, macOS and Linux®

Standard Dimensions
Length:
19.0 cm (7.5”)
Width:
16.2 cm (6.4”)
Height:
12.3 cm (4.8”)
Weight:
1.1 kg (2.4 lbs)

Environment
Humidity:
20 to 95% (R.H. non-condensing)
Temperature:
-10º to 50º C operating; -20º to 50º C storage
IP50 rating for dust ingress protection in the optical chamber
