Thales Gemalto Double-sided ID Card Reader CR5400


ID scanning has never been so easy

To comply with laws and protect your business from fraud, you need to quickly and accurately collect information and determine whether an ID is genuine.

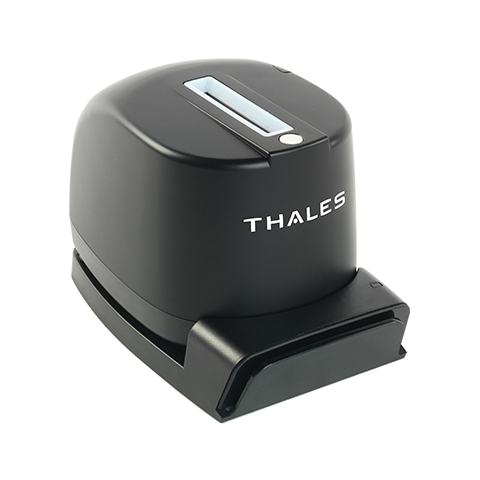

Thales Gemalto Double-sided ID Card Reader CR5400, part of our document reader solutions, ​scans and checks IDs in double-time, reading the front and back simultaneously.

There's no wrong way to insert the card into the ID reader – all you need to do is drop it in.

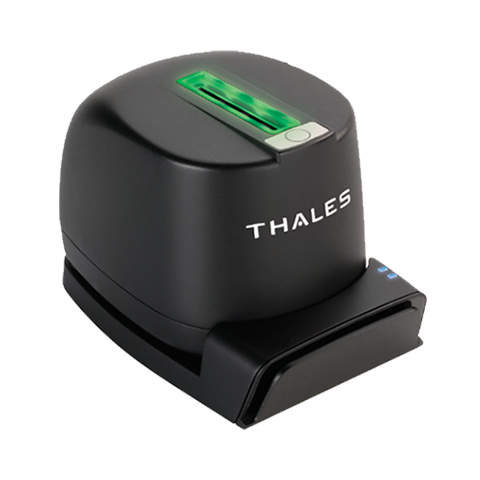

The color-coded LED lights provide a real-time status response, and it automatically ejects the card once it has been read.

You can verify customer IDs in seconds.

The reader is designed for:

  • Banks and Financial Institutions,
  • Border Management,
  • Hospitals,
  • Care Facilities and Pharmacies,
  • Hotels and Casinos, Retail Stores,
  • Schools and Universities.
Contact TSSL

Details of the Gemalto Double-Sided ID Card Reader CR5400 ID and drivers license scanner

  • High-quality document reader for accurate ID/driver’s license validation and authentication
  • Simultaneously images both sides in multiple light sources
  • Processes documents in less than four seconds
  • Cradle offers RFID and magstripe reading or contact smart card.
  • Designed explicitly for reading both sides of an ID card or driver’s license simultaneously.

Additional Information

Illumination
Near IR B900:
880nm, +/-5%
White visible:
400-700nm
Ultraviolet (UVA):
360-370nm

Resolution
Sensor:
10 Megapixels, CMOS, RGB 24 bit color system
Configurable image resolution:
up to 630 DPI

Compatibility
Windows® 7, Windows® 8.1, Windows® 10, macOS and Linux®

Standard Dimensions (Approx) - Imager Only
Length:
15.5 cm / 6.1”
Width:
10.8 cm / 4.3”
Height:
10.2 cm / 4.0”
Weight:
< 1 Kg / 2.2 lbs

Standard Dimensions - Imager and Cradle
Length:
17.7cm / 7.0”
Width:
10.8cm / 4.3”
Height:
12.5cm / 4.9”
Weight:
1.1Kg / 2.4lbs

Operating Environment
Humidity:
20 to 95% (R.H. non-condensing)
Temperature:
0º to 40º C operating; -20º to 50º C storage

Power
Imager:
USB Powered
Imager and Cradle:
1.2A, 5V, Universal input wall-mount external power supply
