Full-Page ID Document Scanner Optimized for Integration

Our Cube product variations include the Cube and the PENTA Scanner® Cube, two solutions especially developed for an easy integration in gates, kiosks, and counters. With an optimized design, the devices handle all size restrictions and integration challenges. Their state-of-the-art scan technology achieves fast and effective read results from ID documents such as passports, ID cards, visas, barcodes, RFID documents, and even NFC reading.

Both Cube and PENTA Scanner® Cube are extremely easy to use and reliable. Their large scan window allows for a quick and easy scanning of barcode or ID documents. Thanks to the IP54 certification the devices are protected against dust and water spillages. All improved features and the reworked design guarantee a fast and efficient data capture and a long life cycle in the self-service environment.

DESKO’s Cube variations are ideal for visitor control, check-in, border control, security checks, and more.

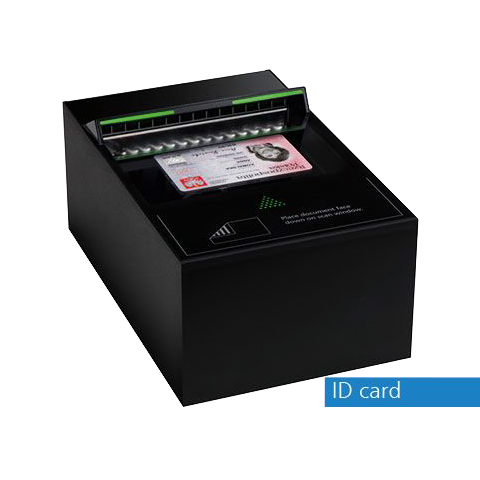

Cube

Standard Features

• Barcode: 1D/2D barcodes from paper and displays (smartwatches, smartphones, tablets), e.g. QR-Code or PDF 417
• Security glass: PERLUCOR glass (on scan window)

Optional Features

• RFID Module: ePassport reading according to ISO 14443 (A/B), ISO 7816, ICAO 9303
• NFC ready: ISO 14443 Type A&B including anti-collision and auto-detection

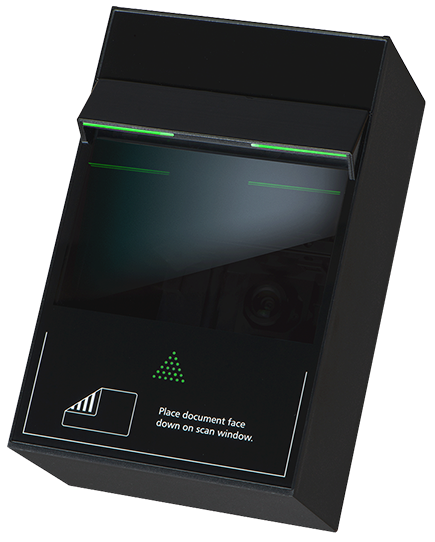

PENTA Scanner® Cube

Standard Features

• Machine-readable Zone (OCR): ISO/IEC 7501-1, ICAO 9303 and ISO 18031
• Light Sources: IR and visible Light
• Security Glass: PERLUCOR glass (on Scan Window)

Optional Features

• Light Sources: UV-A
• Barcode: 1D/2D barcodes from paper or display (smartwatch, smartphones, tables), e.g. QR Code or PDF 417
• RFID module: ePassport reading, according to ISO 14443 (A/B), ISO 7816, ICAO 9303
• NFC ready: ISO 14443 Type A&B including anti-collision and auto-detection
